Your Customized OEM/ODM Stone Grinding Wheels Manufacturer

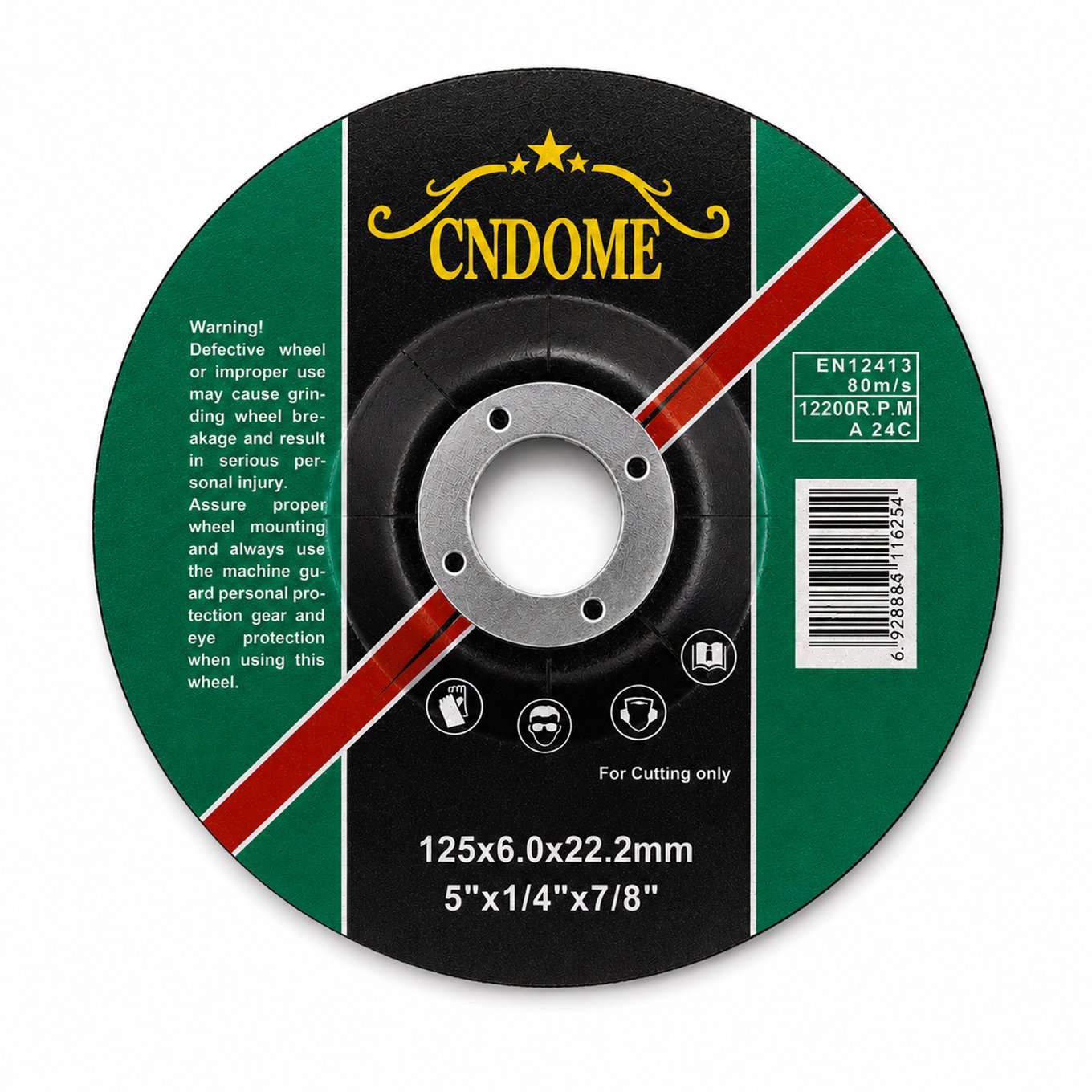

Stone grinding wheels are primarily used to grind granite, marble, and concrete. They are commonly used in the construction and exterior wall decoration industries.
Dome developed a formula for stone grinding discs based on the hard and brittle properties of stone. The formula primarily consists of high-quality, sharp silicon carbide abrasive combined with multiple layers of reinforced resin mesh. Not only do these stone grinding wheels increase cutting efficiency by 30%, but they also offer exceptional self-sharpening properties. The open-cell structure rapidly removes stone dust, effectively preventing workpiece burning caused by excessive heat while extending the service life of the grinding discs by 30%.
Dome’s stone grinding discs for angle grinder are certified to the European EN 12413 standard. Every batch of products undergoes rigorous testing, such as the 80m/s rotational strength test and dynamic and static balance tests. As a professional OEM manufacturer, we offer a full range of private-label customization services. Please feel free to contact us at any time.
Stone Grinding Wheels
T27 type. Extremely high hardness, self-sharpening properties and thermal conductivity
Common Sizes and Models we provide

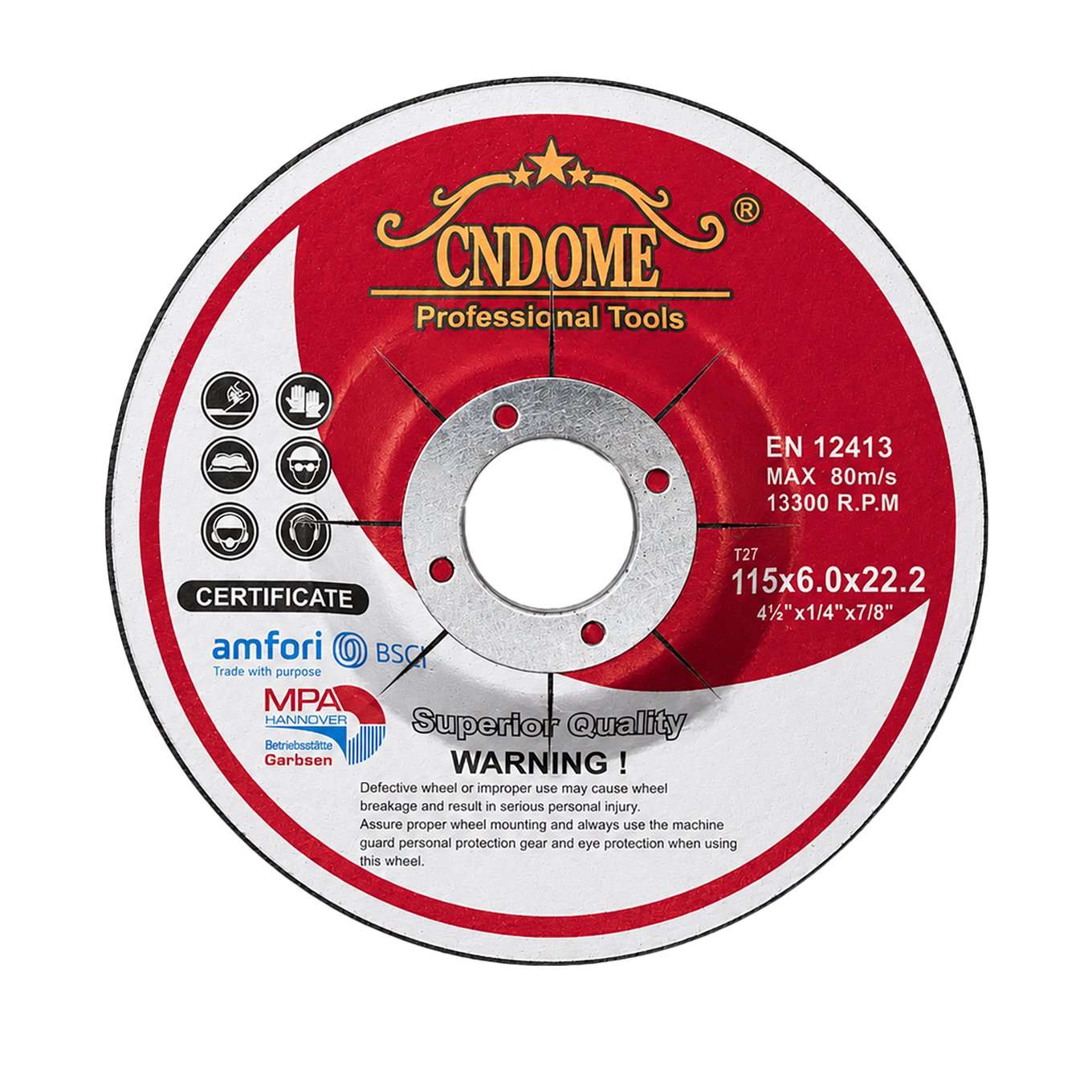

4 1 2 cut off wheels (T27)

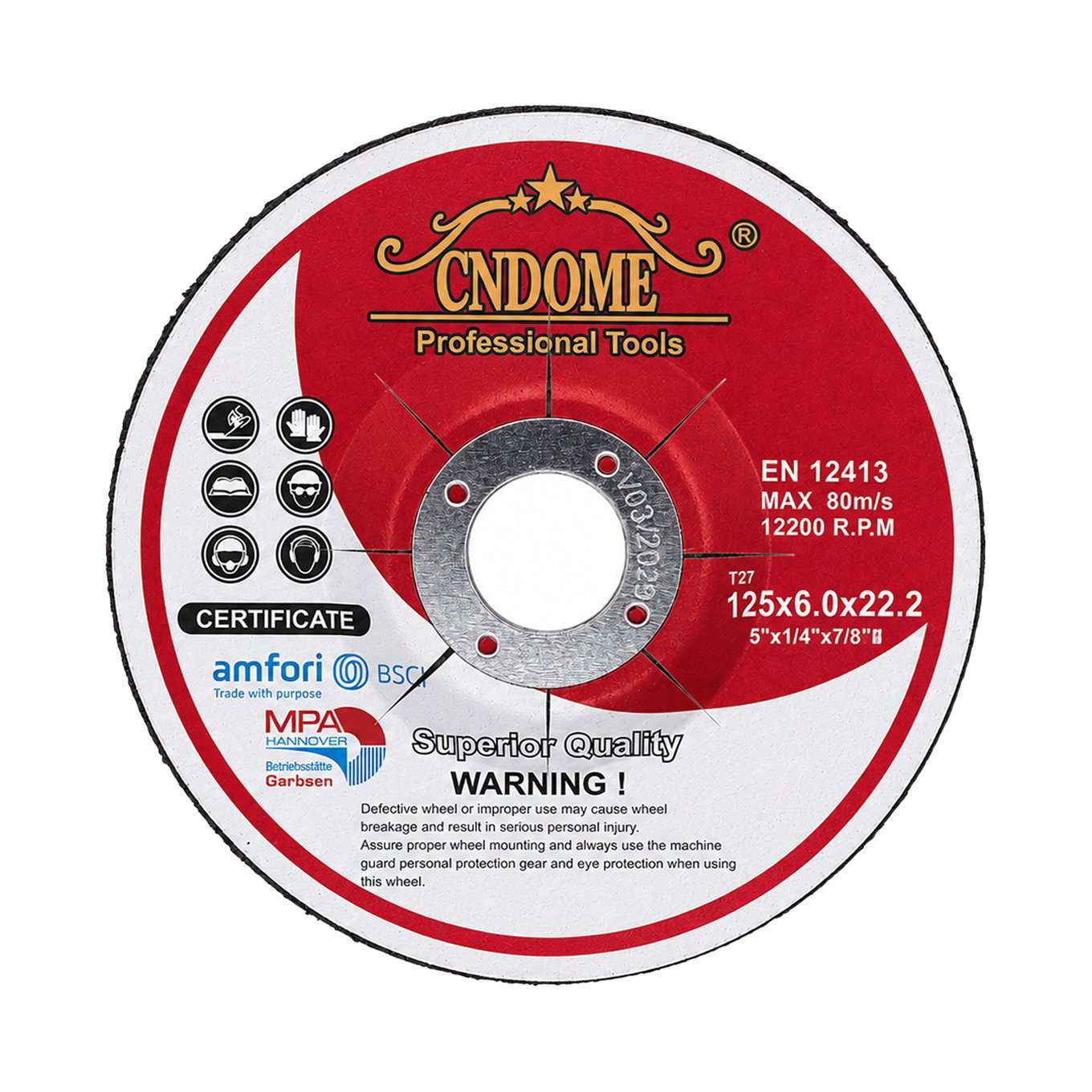

5 grinding wheels (T27)

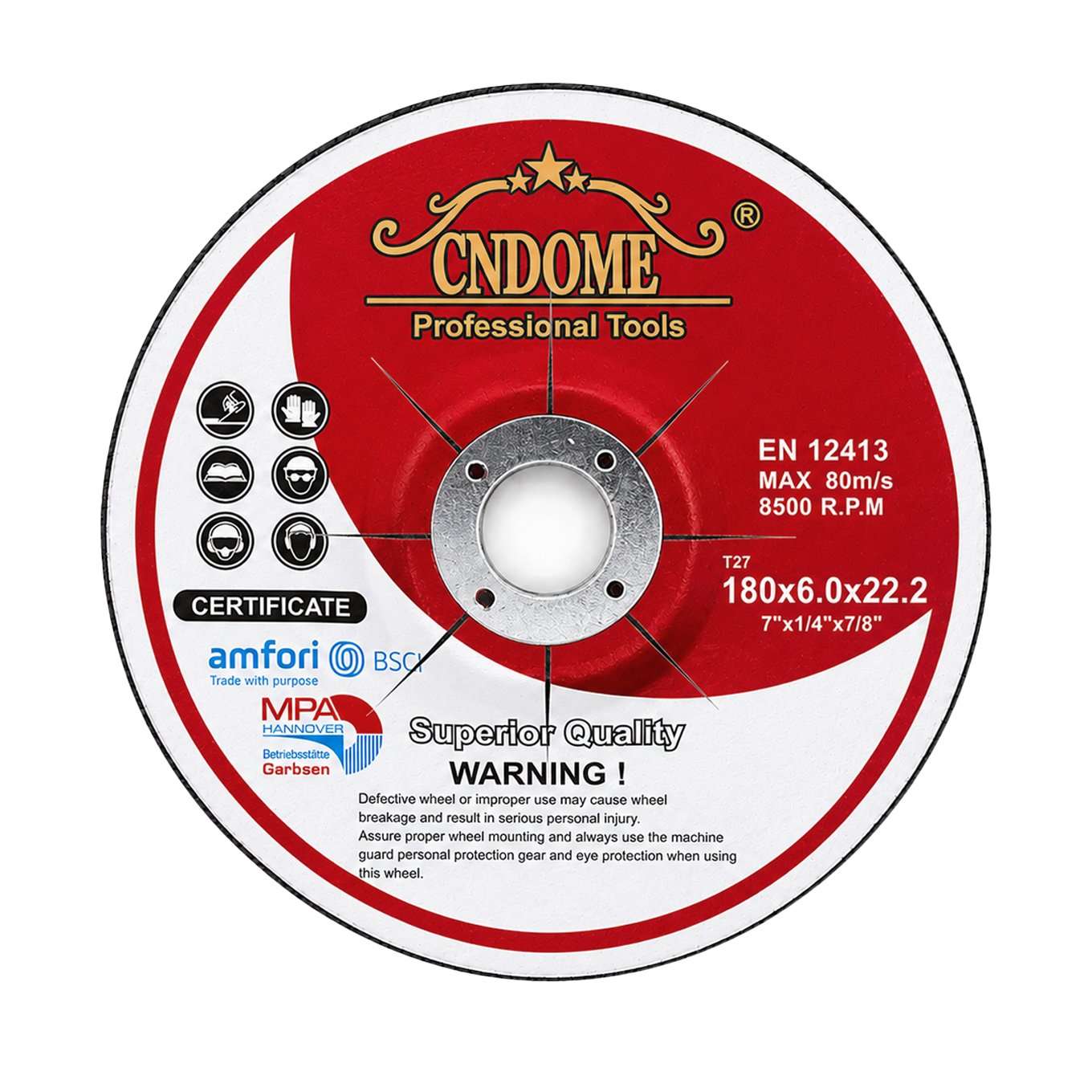

7 grinding wheels (T27)

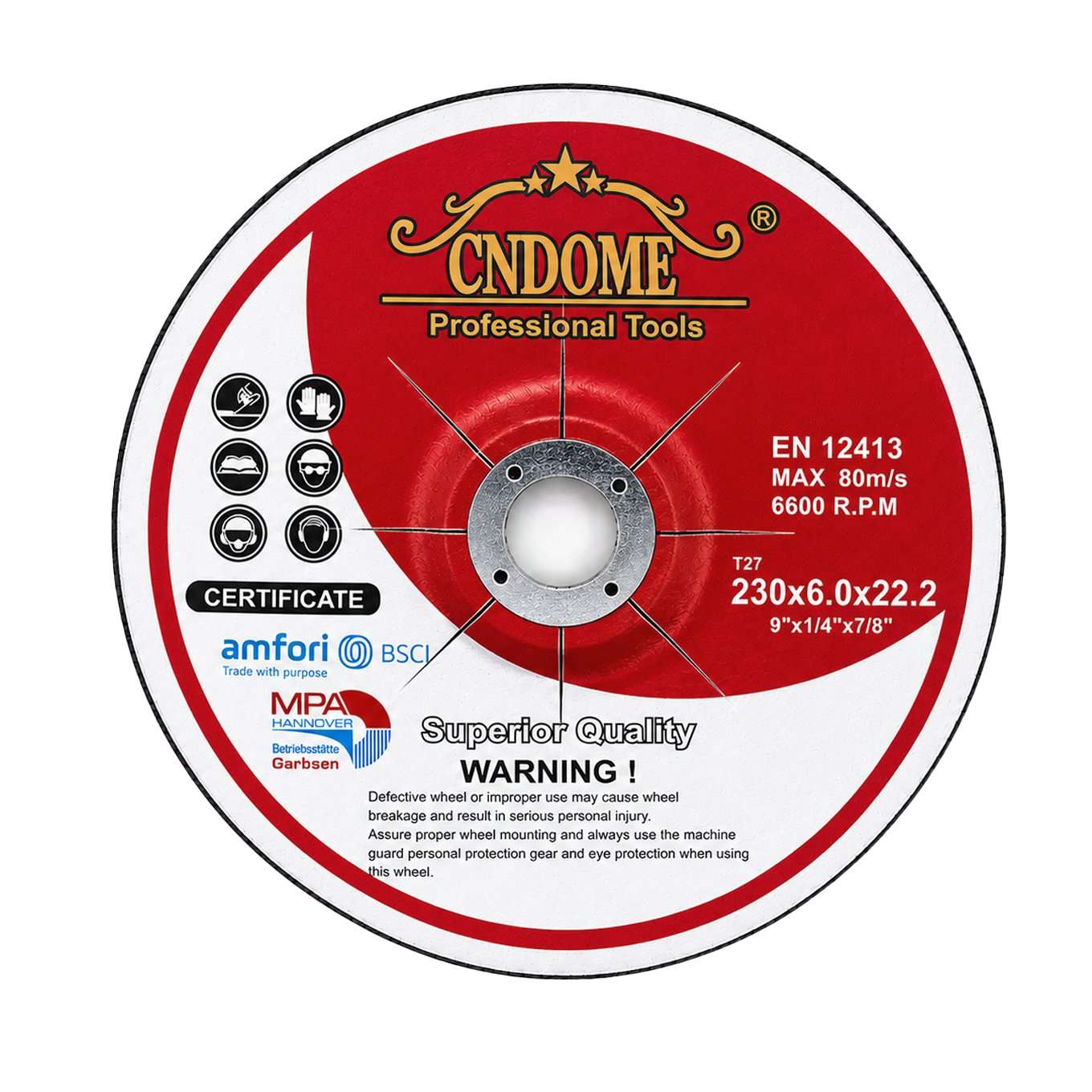

9 grinding wheels (T27)
OEM Customised Stone Grinding Wheels
| Outer diameter range | 50-230mm |
| Thickness | 2.5-16mm |
| Workpieces | Stone, concrete, brick, masonry, granite and marble |
| Available styles | Standard/Premium |
| Maximum speed | 80m/s |
| Sectors of Application | Construction, masonry, stone fabrication, renovation and landscaping |
“`
- Type T27 Stone Grinding Wheels Parameters
| Outer diameter (mm) | Outer diameter (inch) | Thickness (mm) | Thickness (inch) | Bore (mm) | Bore (inch) | Type |
| 50 | 2 | 4.0-16 | 5/32-5/8 | 10 | 3/8 | T27 |
| 58 | 2-1/4 | 4.0-6.0 | 5/32-1/4 | 10 | 3/8 | T27 |
| 75 | 3 | 4.0-6.0 | 5/32-1/4 | 10 | 3/8 | T27 |
| 100 | 4 | 2.5-8.5 | 3/32-11/32 | 16 | 5/8 | T27 |
| 115 | 4-1/2 | 5.0-7.2 | 3/16-9/32 | 22.2 | 7/8 | T27 |
| 125 | 5 | 3.0-7.2 | 1/8-9/32 | 22.2 | 7/8 | T27 |
| 150 | 6 | 6.0-7.0 | 1/4-9/32 | 22.2 | 7/8 | T27 |
| 180 | 7 | 6.0-8.0 | 1/4-5/16 | 22.2 | 7/8 | T27 |
| 230 | 9 | 6.0-8.0 | 1/4-5/16 | 22.2 | 7/8 | T27 |
